A PIUSI VISCOTROLL VANE A nozzle-category, portable oil transfer kit specifically developed for the needs of fast-paced workshops, agricultural facilities, and industrial environments. This system provides an excellent solution for the efficient and reliable transfer of viscous fluids, especially oils, ensuring a continuous and pulsation-free flow.
The VISCOTROLL VANE kit guarantees reliability and long service life thanks to PIUSI's expertise. The main element of the kit is the PIUSI Viscomat Vane AC type self-priming vane pump, which excels at handling high-viscosity materials.
Main Advantages:
Portability: Compact, robust design, easily movable unit, ideal for flexible applications.
High Performance: Flow rate up to 25 l/min, supporting the speed of work processes.
Viscosity Handling: Capable of handling oils up to 500 cSt viscosity, ensuring a constant and even flow.
AC Version: Thanks to the mains (AC) version, the pump can be operated directly from any standard electrical outlet, requiring no compressed air.
Biztonság és Pontosság: The included suction and delivery hoses, along with the safety nozzle, guarantee safe and controlled dispensing.
The VISCOTROLL VANE kit is designed to be immediately ready for use and to withstand even the most demanding conditions.

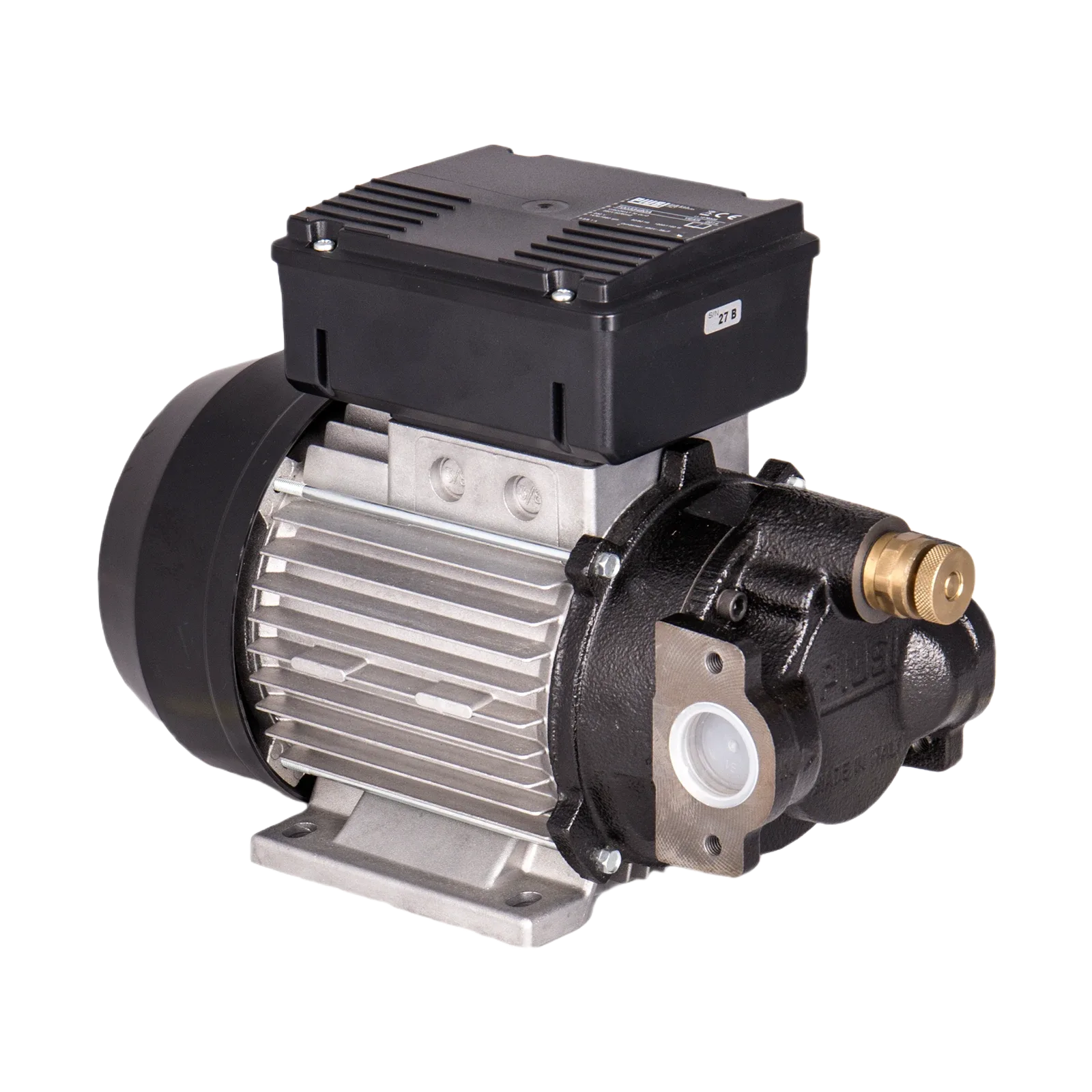

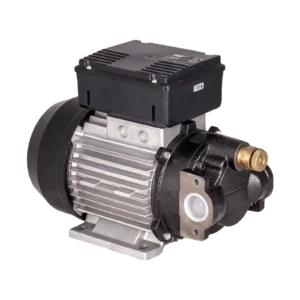

The heart of the system is the Viscomat Vane AC pump, which uses vane technology for fluid delivery.
Type: Self-priming vane pump.
Power Supply: AC (Alternating Current) mains connection.
Flow Rate: Up to 25 liters/minute (l/min).
Maximum Viscosity: 500 cSt.
Operation: Quiet, pulsation-free operation, which increases user comfort and workplace safety.
The kit includes PIUSI quality dispensing components for precise and safe operation.

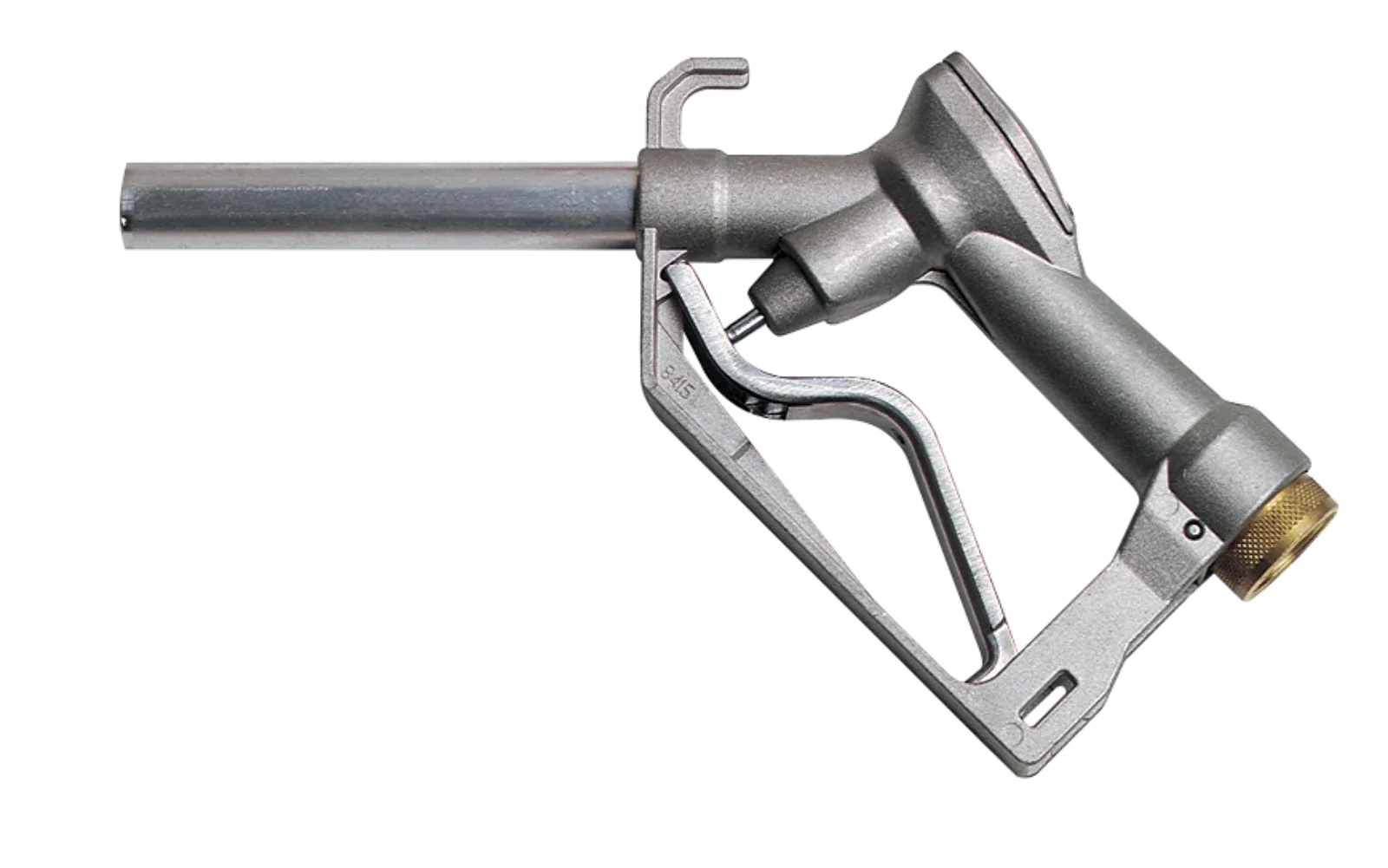

Nozzle: PIUSI Self 3000 manual nozzle. This nozzle ensures easy handling and precise shut-off.
Delivery Hose: Delivery hose equipped with a 3/4" BSP thread, 4 meters in length, providing sufficient range of movement in the workshop.
Suction hose: Suction hose equipped with a 1" BSP thread and a bottom valve. This valve is critical as it guarantees the unidirectional flow of oil, preventing the system from emptying or the fluid from flowing back into the pump during shutdowns.
Flow Meter (Optional): A manual flow meter can be ordered with the kit, allowing for precise tracking of the dispensed quantity. (Note: The K33 flow meter type is only included in certain configurations, such as the VISCOTROLL 70/K33, as a standard accessory.)

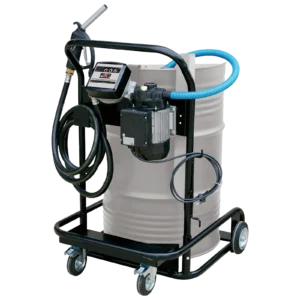

The robust design of the VISCOTROLL VANE ensures long-term reliability. The pump and accessories are mounted on a sturdy design cart for easy mobility.
Application areas:
Vehicle Service Stations (Garage Equipment): Ideal for fast changing of engine oils and transmission fluids.
Agriculture: On-site lubrication replenishment for tractors, combine harvesters, and other agricultural machinery.
General Industry: Any industrial environment where the transfer of viscous fluids is required.
The table below summarizes the different available VISCOTROLL VANE configurations and their identifiers:
| Product Code | Description | Spare Parts | Manuals |
|---|---|---|---|
| 000263100 | VISCOTROLL 70 | [Search for Spare Parts] | [Search for Manuals] |
| 000263110 | VISCOTROLL 70/K33 | [Search for Spare Parts] | [Search for Manuals] |

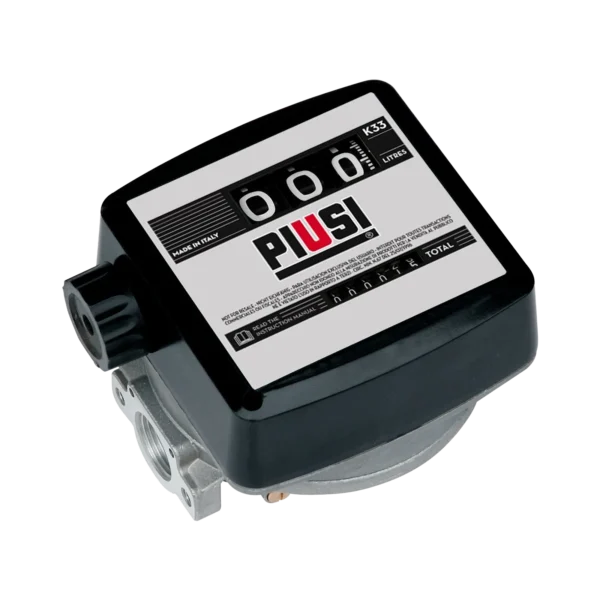

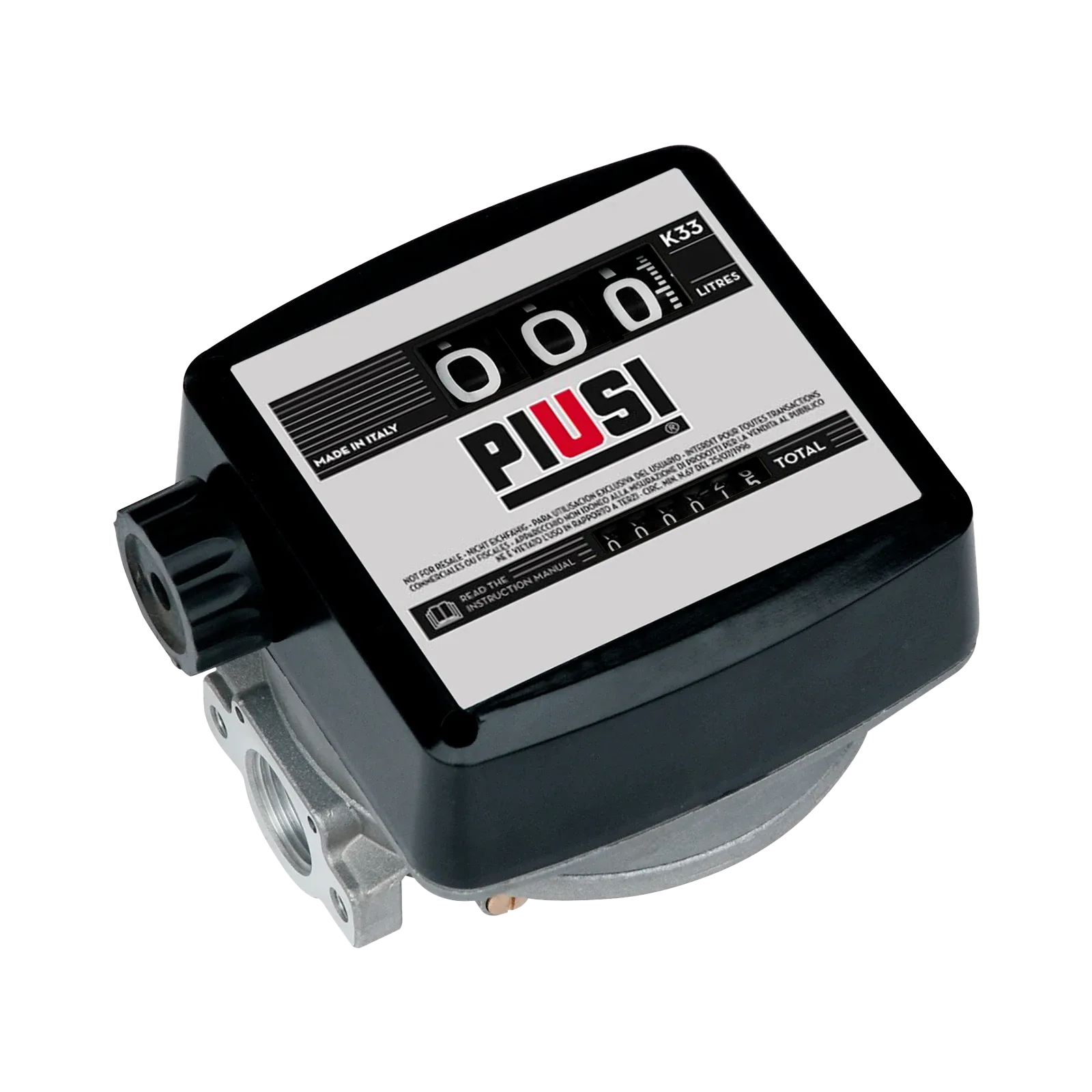

Note: The K33 option indicates a Nutating disc type mechanical flow meter, which increases dispensing accuracy.
The PIUSI VISCOTROLL VANE portable oil transfer kit is an apparatus that combines the reliability of PIUSI pumps with a user-friendly, mobile design. Optimized for the efficient, pulse-free transfer of high-viscosity oils, this kit significantly speeds up lubrication replenishment processes both in workshops and in the field, while built-in safety features (non-return valve, quality nozzle) guarantee loss-free and safe operation. This product is designed for professionals seeking quality and durability.
