This detailed product description presents the S6 and S7 tool set, designed for the professional riveting technology of Wieländer+Schill, specifically engineered for the proper installation of 5.3 mm diameter self-drilling rivets (SPR). This set is an essential tool for any professional requiring highly accurate and durable fastenings during vehicle body repairs.
The tool set, part number 700236, consists of two fundamental components that collectively ensure the optimal deformation and securing of self-drilling rivets: an S6 setting tool and an S7 closing tool. The set is part of the Wieländer+Schill XSeries professional riveting technology, guaranteeing quality and performance compliant with OEM (Original Equipment Manufacturer) specifications.
The precision machining of the tools ensures that the rivet correctly pierces the material during insertion, and then, under the action of the closing tool, the rivet head fits perfectly onto the surface, creating an extremely strong and durable mechanical joint.
This tool set is the ideal choice:
For vehicle body repairs: Especially in areas where traditional welding cannot be used, or where a reliable, high-strength connection is essential.
For the installation of self-drilling rivets (SPR): Optimized specifically for 5.3 mm diameter rivets.
For professional workshops: For the sake of durability and reliability that meets the highest industrial standards.
The tool set contains the following components, each with a separate part number for easier identification and replacement:
| Component | Part number | Description | Spezification |
|---|---|---|---|
| S6 Setting Tool | 700821 | Setting tool for self-drilling rivets (SPR) | For Ø 5.3 mm rivets |
| S7 Closing Tool | 700824 | Closing tool for self-drilling rivets (SPR) | For Ø 5.3 mm rivets, 5.5 mm length |

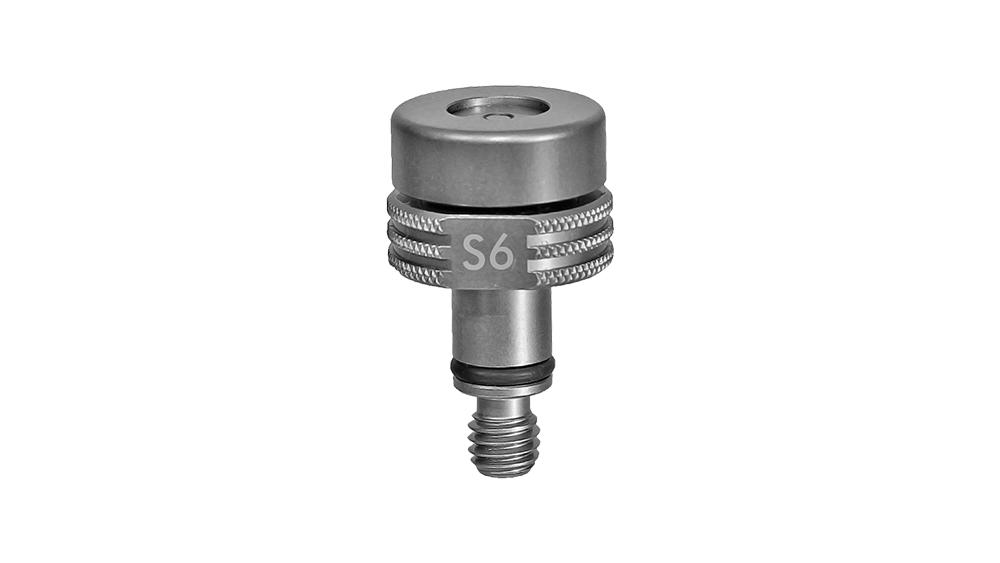

This tool is responsible for the insertion of the rivet and the penetration of the materials. Its precisely designed geometry ensures that the rivet is optimally prepared for the closing phase during setting.
Function: Insertion of the rivet and creation of the primary deformation.
Compatibility: Exclusively for 5.3 mm diameter self-drilling rivets.
Advantage: Guarantees clean and effective piercing, minimizing unnecessary material damage around the connection point.

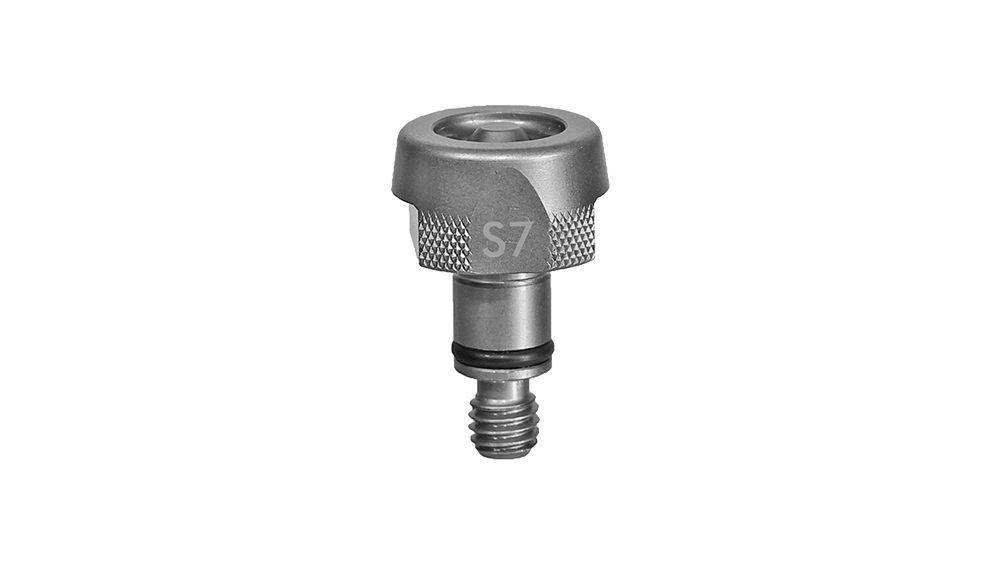

The S7 closing tool becomes active following the setting phase. This tool shapes the blind head of the rivet, creating the final, solid fastening between the workpieces.
Function: Final shaping of the rivet head and creation of the secure fastening.
Compatibility: For SPRs with a diameter of Ø 5.3 mm.
Sizing: The tool length is 5.5 mm, which is critical for achieving the proper closing force and perfect fit.
Advantage: Ensures the formation of a closure head compliant with OEM specifications, essential for maintaining structural integrity.
Wieländer+Schill products are manufactured according to the highest quality standards, supported by ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) certifications. This tool set belongs to the category of professional body repair tools and is designed for long service life and reliable performance.
The use of the tools with the appropriate riveting machine (belonging to the XSeries technology platform) guarantees fast and repeatable results, which is crucial for high-traffic workshops.
This product belongs to the category of „Dies | Punches | Extrusion Mandrels” and is closely associated with the Wieländer+Schill XSeries professional riveting technology.
Important note: Login to the webshop is required to view exact prices and order information.
This tool set offers the highest level of fastening solutions in the field of car body construction and repair for 5.3 mm self-drilling rivets.
