This detailed product description presents the tool set, which is part of the professional body repair tool range from Wieländer+Schill, specifically designed for the professional removal of Self Piercing Rivets (SPR). The set belongs to the Wieländer+Schill XSeries professional riveting technology, ensuring damage-free disassembly of body components.
A D13 + D14 tool set (Part No.: 700228) is a two-piece, precisely machined unit essential for the efficient and safe removal of 5.3 mm diameter self-piercing rivets (SPR) used in the bodywork of modern vehicles. The set guarantees work conforming to OE (Original Equipment) specifications, minimizing the risk of damage to surrounding materials.
This tool set is the ideal choice for professional workshops where speed, reliability, and precision are crucial during repair processes.
The set with part number 700228 contains the following perfectly matched components:
| Component | Part number | Description | Application |
|---|---|---|---|
| D13 Extraction mandrel | 700812 | Extraction mandrel | For the removal of self-piercing rivets (SPR) |
| D14 Extraction die | 700808 | Extraction die | For SPR 5.3 × 7.5 mm dimensions |

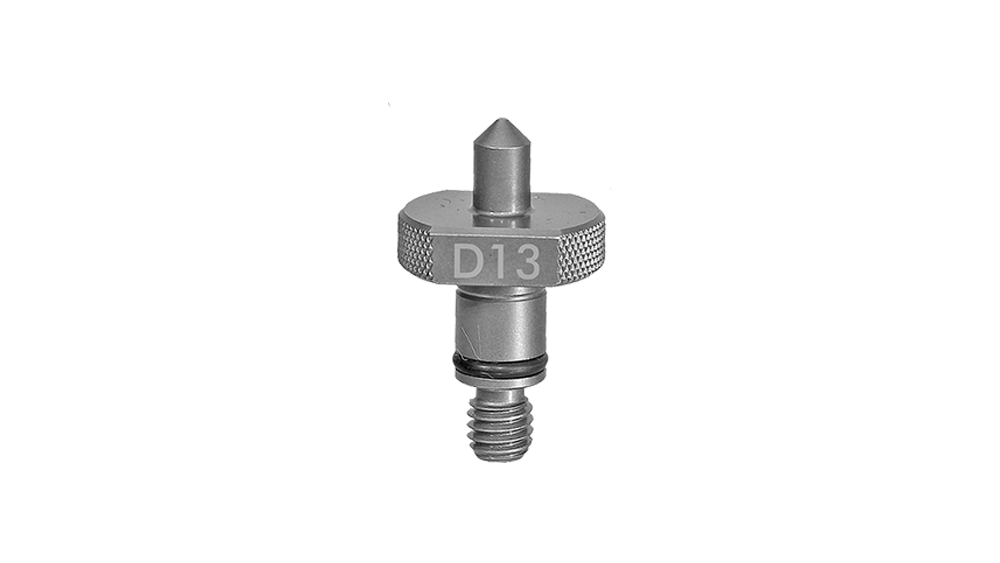

The D13 extraction mandrel is the active element for rivet removal. It is specifically designed to concentrate force on the appropriate point of the rivet head or body, enabling the rivet to be expanded or penetrated by the tool for safe extraction.
Célzott alkalmazás: Removal of self-piercing rivets (SPR).
Compatible size: Optimized specifically for SPR rivets with a diameter of 5.3 mm and a length of 7.5 mm.
Advantage: Precise fit ensures maximum efficiency and minimizes the possibility of tool slippage.

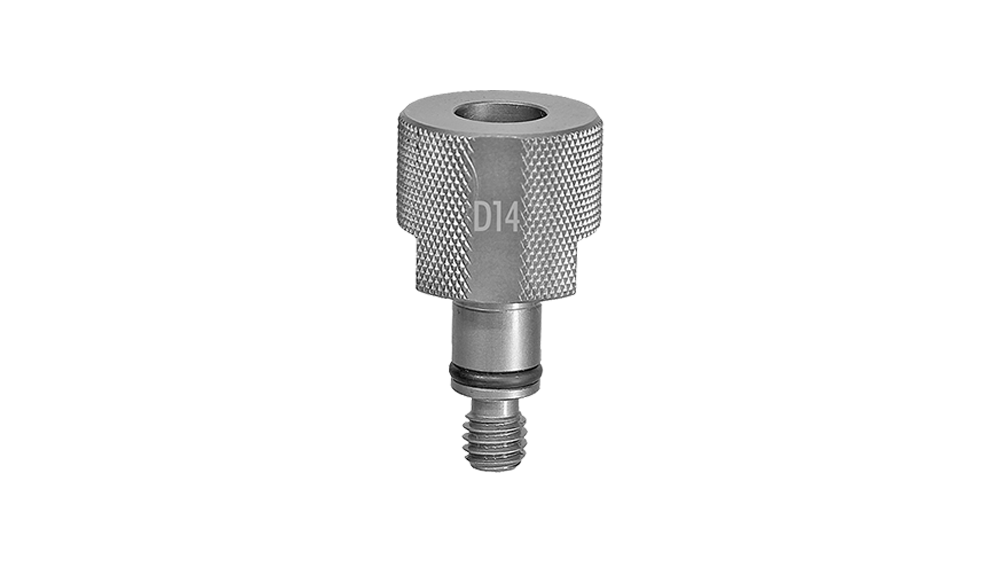

The D14 extraction die functions as the counter-support for the D13 mandrel. This tool provides the necessary support and resistance during the rivet removal process, preventing deformation of the body panel during the operation.
Célzott alkalmazás: Providing counter-pressure during the rivet removal process.
Compatible size: SPR 5.3 × 7.5 mm.
Advantage: The design of the tool ensures that during rivet removal, the force is concentrated on the rivet itself and not on the surrounding metal surface.
This tool kit integrates into the Wieländer+Schill XSeries professional riveting technology platform. The tools are made from high-quality, durable materials that withstand high mechanical stress and frequent use.
| Property | Value | Note |
|---|---|---|
| Product Category | Dies | Punches |
| Product Family | XSeries – Professional Riveting Technology | Professional riveting technology |
| Main Function | Rivet extraction | Self-piercing rivet (SPR) removal |
| Set Part Number | 700228 | Identifier for the complete D13+D14 kit |
| SPR Diameter | Ø 5.3 mm | Nominal diameter of the compatible rivets |
| SPR Length (according to D14) | 7.5 mm | According to D14 tool specification |
| D13 Part Number | 700812 | Blind rivet pin |
| D14 Part Number | 700808 | Puller tool (Die) |
The use of the D13 + D14 tool kit offers several advantages in body repair processes:
OE Compatibility: The tools are designed to meet manufacturer specifications, which is essential for warranty and brand service work.
Damage-Free Removal: The precise fit and correct force distribution minimize damage to surrounding metal parts, thereby reducing the need for further repair work.
Durability: The tools are made of high-quality steel, which guarantees a long service life and reliable performance even in high-traffic workshop environments.
Efficiency: The special design allows for faster and simpler rivet removal compared to traditional methods.
This kit is an integral part of the broad Wieländer+Schill tool range, which includes welding technology, separation tools, as well as dent removal and metal processing solutions. The product represents the cutting edge of professional body repair technologies.
Note: For product pricing and exact availability, please log in to your user account in the online shop.
