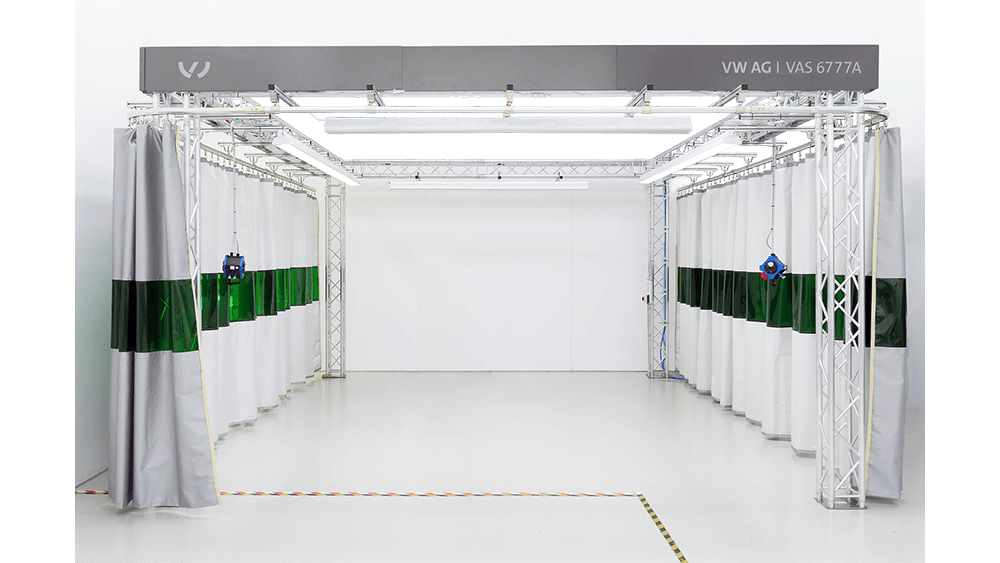

A VAS 6777A Work bay Basic (Part no.: 932263) The entry-level, yet extremely high-quality version of Wieländer+Schill's professional workstation systems. This system offers an ideal solution for body repair work where a clean, well-lit, and safe working environment is essential. Designed in accordance with Volkswagen AG's workshop equipment recommendations, the unit is built on a high-quality aluminum lattice support structure and provides basic energy supply functions.
This „Basic” version primarily differs from the „Plus” version in terms of media supply, but the high-quality basic components – such as energy-saving LED lighting and the special welding protection curtain – are included, guaranteeing efficient and safe work execution.
The VAS 6777A Basic work bay system is designed to maximize workstation efficiency while minimizing hazards.
High-Quality Structure: The support structure consists of high-strength aluminum lattice elements, ensuring stability and a long service life.
Energy-Efficient Lighting: The built-in LED lighting creates optimal working conditions, significantly reducing energy consumption compared to traditional fluorescent tubes.
Welding Protection: The special protection curtain is equipped with a green welding protection window, ensuring necessary safety during welding operations.
Compact Energy Supply: The two permanently installed compressed air and power supply units feature a robust rubber hose, eliminating the tripping hazard caused by cables lying on the floor.
Expandability: Although this is the basic model, it can optionally be equipped with accessories, such as industrial vacuum cleaner systems, further increasing flexibility.
The scope of delivery and technical parameters of the VAS 6777A Work bay Basic are as follows:
| Parameter | Value | Note |
|---|---|---|
| Product Identifier | VAS 6777A Work bay Basic | Part No.: 932263 |
| System Type | Entry-Level Work bay System | For workshops with ideal basic equipment level |
| Overall Dimensions (H x W x D) | 8 m x 6 m x 3.5 m | External dimensions of the installed system |
| Media Supply | 2 pcs fixedly installed units | Compressed air and power supply |
| Lighting Type | Energy-saving LED | Long service life and low power consumption |
| Illumination Level | 1000 lux (horizontal) | Measured at 1.0 m height, in the center of the work area |
The complete system consists of the following main components:
Aluminum grid support system with 4 supports.
2 protective curtains, with green welding protection window.
Installation package (with mounting elements).
Scope of delivery: 2 units (PU: 2 pcs).
Robust housing reinforced with hard rubber.

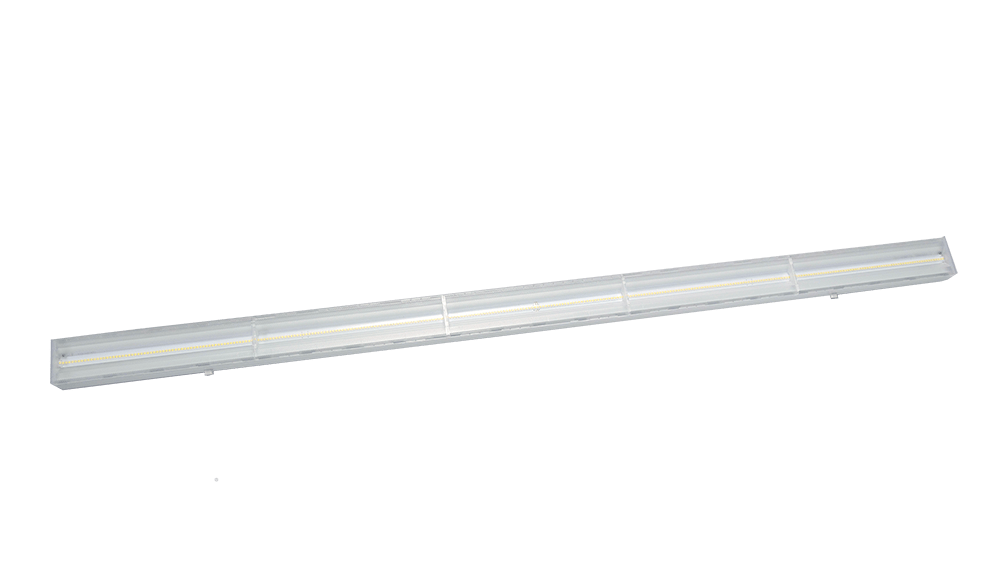

This lighting system is crucial for precision work as it provides illumination similar to natural light.
LED Units: 10 LED units arranged in a U-shape for maximum coverage.
Lifespan: Extremely long service life of up to 60,000 hours, which is three times the service life of conventional fluorescent tubes.
Energy Efficiency: Consumes more than 50% less energy than conventional fluorescent tubes of the same brightness.
Heat Generation: Minimal heat emission, which creates a more pleasant working environment and reduces the load on air conditioning systems.
Light output:
Luminous Flux: 8000 lm / 150 cm LED unit.
Beam Angle: 120°.
Power: Only 50 W.
Colour Temperature: 6500 K (Daylight white light), ideal for color-accurate tasks.
Scope of Delivery: 10 pcs LED units, including the gear tray and necessary mounting accessories.

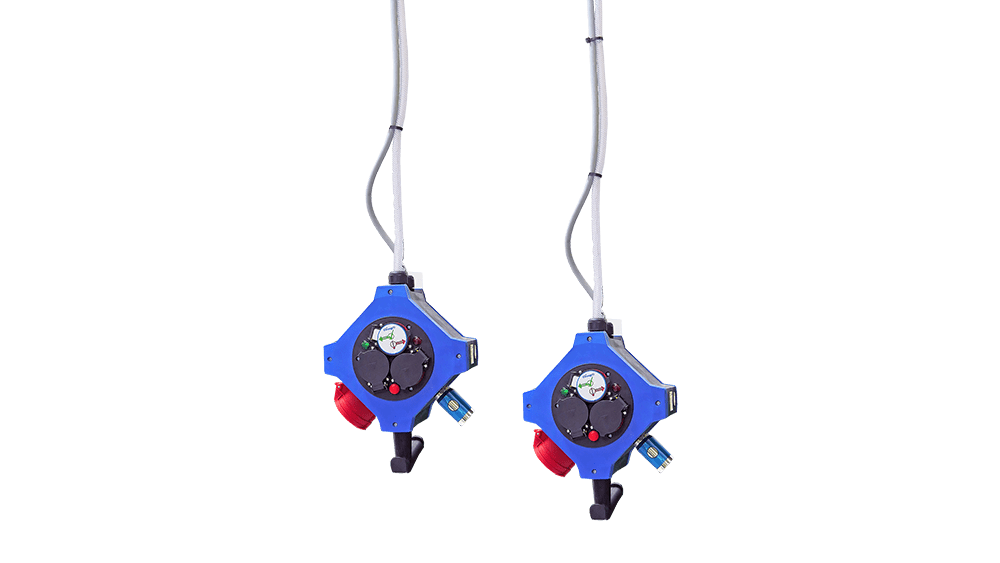

This component ensures the safe and organized distribution of compressed air and electrical energy within the work area.
Function: Fixed media supply for compressed air (max. 12 bar) and energy.
Configuration: Robust housing reinforced with hard rubber, resistant to workshop use.
Safety:
The compressed air safety couplings feature a push-button, preventing accidental ejection of the air hose during disconnection.
Integrated thermal overload protection automatically switches off the unit in case of overheating.
Cable-free operation: The fixed installation eliminates floor hazards caused by cable reels, extension cords, and compressed air hoses.
Installation: Can be mounted on either side of the WS ARENA system.
Equipment:
2 x Socket 6 (230 V, CEE 7/3).
2 x Socket 1 (400 V, CEE 16 A).
2 x Push-button compressed air safety couplings.
Galvanized drag chain and compressed air hose (9 x 2.5 mm) included.
Serves for the physical separation and protection of the work area.
Support Structure: Aluminum grating system with 4 supports, ensuring stable suspension of the curtains.
Protective Curtains: 2 curtains providing basic protection for the surrounding surfaces.
Welding Window: The integrated green protective window of the curtains allows for visual monitoring of the work in progress while blocking harmful UV and IR radiation.
A VAS 6777A Workbox Basic The ideal choice for all professional body repair shops that meet the standards required by Volkswagen AG but are still looking for a cost-effective solution for designating repair zones. Excellently suited for separating minor repair, welding, or assembly work where basic media supply needs must be met without the requirement for more expensive, complex systems (e.g., with central extraction or large cable reels). Thanks to the modular structure of the system, it can be expanded later as the workshop's needs grow.
