A WS ARENA BASIS The base model of the professional WS workshop systems, designed to provide an optimal working environment for body repair and metalworking tasks. This configuration includes a high-quality aluminum grating support structure, energy-saving LED lighting, and a special welding protection curtain, making it an ideal choice for those seeking a reliable but basic functional workspace.
The main distinguishing feature of the WS ARENA BASIS is the requirement for a 110 V mains voltage which differs from the 230/400 V versions. The system differs from the WS ARENA PLUS version primarily in terms of media supply: the BASIS version consists of fixed, stationary compressed air and power supply units, while the PLUS model includes a mobile media cart.
This workspace is excellently suited for performing welding, grinding, or other bodywork, where a clean, well-lit, and safe environment is essential.
Robust Aluminum Grating Structure: The support structure guarantees excellent stability and long service life, ideal for industrial environments.
Energy-Saving LED Lighting: The included LED lighting kit results in significant energy savings while providing excellent, near-daylight illumination.
Welding Protection: The special protection curtains with green welding protection windows ensure safe work execution and protect surrounding surfaces.
Expandability: Although this is the base model, it can optionally be equipped with accessories, such as industrial vacuum systems, to make workflows even more efficient.
The WS ARENA BASIS (Part Number: 881867) includes the following components:
| Component | Part number | Description |
|---|---|---|
| Aluminum Grating Structure | N/A | With 4 legs, standard dimensions: 5.5 m × 7.5 m × 3.5 m |
| LED Lighting Kit | 881890 | 120° angle, 100 – 277 V AC, 4-sided lighting |
| Protection Curtain (2 pcs) | 881733 | Dimensions: 12.10 × 2.87 m, with green welding protection window |
The system's foundation is a high-load-bearing, modular aluminum truss structure with four legs.
Standard Dimensions: 5.5 meters (width) × 7.5 meters (depth) × 3.5 meters (height).
Material: High-strength aluminum profiles that are lightweight yet extremely stable.

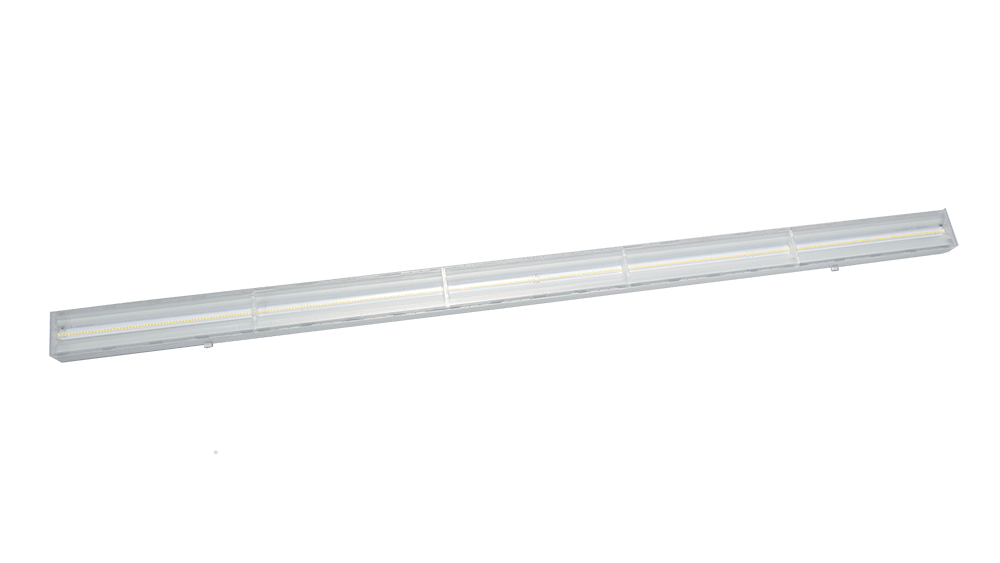

This kit ensures optimal illumination of the work area, minimizing shadows and eye strain.
Voltage Range: 100 – 277 V AC (Compatible with 110 V mains).
Light Distribution: 120° beam angle.
Luminous Flux (Lumen): 6400 lm per 120 cm LED unit.
Power: Only 40 W per unit.
Color Temperature: 6500 K (Daylight White light, ideal for accurate color assessment).
Lifespan: Up to 60,000 hours, which is three times the lifespan of traditional fluorescent tubes.
Energy Efficiency: More than 50% less energy consumption at the same light output.
Heat Emission: Minimal heat radiation, creating a more pleasant working environment and reducing the load on air conditioning systems.
Composition: 14 LED units, arranged in a U-shape on the 4 sides, complete with mounting accessories.
Two large protection curtains ensure the safety zone.
Dimensions: 12.10 meters × 2.87 meters (per piece).
Protection: Equipped with green welding protection windows that effectively filter harmful UV and infrared radiation while allowing for visual inspection.
A WS ARENA BASIS and WS ARENA PLUS The main difference lies in the media supply:
WS ARENA BASIS (Current product): It features two fixed-mounted compressed air and power supply units, with a robust rubber hose. This solution is ideal when the workspace location is constant.
WS ARENA PLUS: The PLUS model is more flexible 881797 Mobile media cart it includes, equipped with drawers, cable and hose reels, as well as a telescopic arm holder, increasing mobility within the workshop.
Although the BASIS model offers a basic configuration, it can be adapted to user needs:
The WS ARENA BASIS is a reliable, energy-efficient, and safe basic system that represents excellent value for money in the professional workshop equipment market, especially in locations with a 110V power grid infrastructure.
