Product Identifier: 700080
This professional C-arm set has been developed for the Wieländer+Schill XSeries riveting technology, offering an optimal solution for body repair work. The set includes four essential C-arm components, two special extensions, and a robust carrying case, ensuring flexibility and efficiency during the most diverse applications.
The C-arm set with part number 700080 consists of accessories designed for XSeries systems, enabling the precise and secure fastening and processing of components of various sizes and types. The goal of the set is to allow users quick and easy access to the necessary C-arms and adapters, all in an easily transportable and storable format.
The C-arms are made from high-quality materials, combining durability and precise mechanical properties. The set is the ideal choice for professional workshops where reliable and fast work execution is essential.
The 4-piece C-arm set includes the following components, each carefully selected to fully support the XSeries system:
| Part number | Designation | Description |
|---|---|---|
| S700071 | C-Arm GC 80/130 | Basic C-arm component, ideal for standard size jobs. |
| S700072 | C-Arm GC 140/240 | For tasks requiring greater reach or stronger fastening. |
| 700153 | Extension for the PushPull PP 90 | 60 mm extension adapter for the PushPull PP 90 type tool. |
| 700517 | Extension for the SSC 35/25 | 93 mm extension adapter for the SSC 35/25 short stroke cylinder. |
| N/A | Transport Case | Robust carrying case for the safe transport and storage of C-arms and accessories. |
The components of the set are made from a combination of various, heavy-duty materials, guaranteeing long service life and reliable performance:
The weight and material of the set are optimized for professional use.
| Property | Value |
|---|---|
| Total Weight | 14.850 kg |
| Main Materials | Plastic, Steel |
| Compatibility | XSeries Riveting Technology |
The functionality of the set can be further enhanced by the following accessories, available separately, which can be closely integrated into the use of the C-arms:

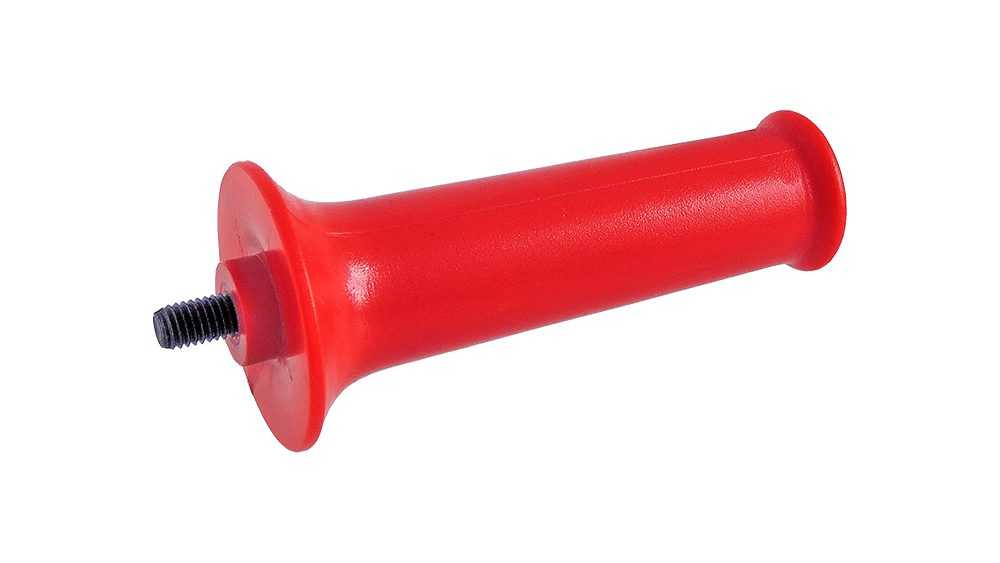

Part number: 881341
Description: Red handle that facilitates the quick and comfortable fastening of fastening elements (fix magnets) and C-arms. Its ergonomic design improves handling during work processes.

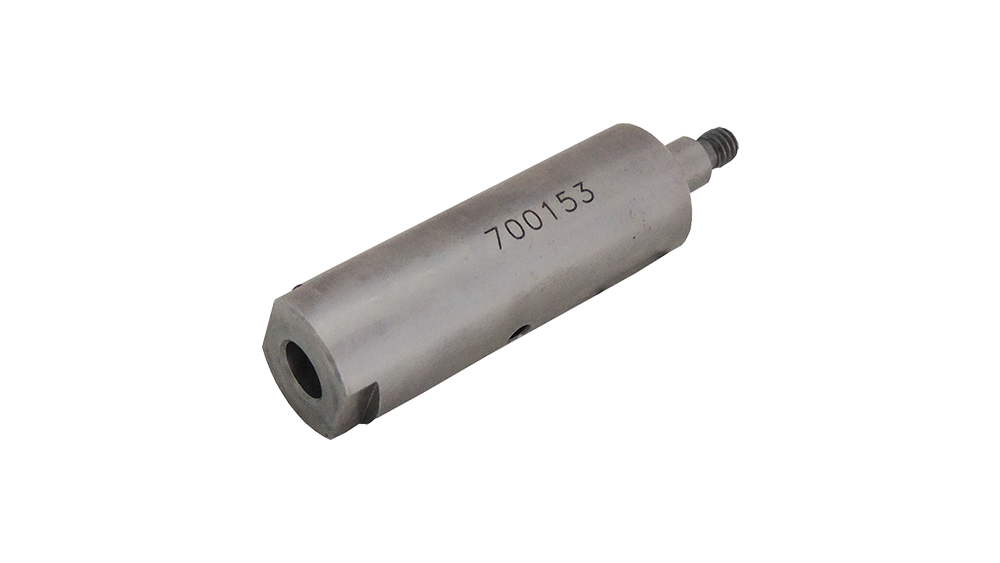

Part number: 700153
Description: This 60 mm extension is specifically designed for the PushPull PP 90 riveter, and when used with the GC 140/240 C-arm, it increases the working distance and accessibility.
Part number: 700517
Description: A 93 mm extension adapter used in conjunction with the SSC 35/25 short-stroke cylinder, especially when combined with the GC 140/240 C-arm, to reach hard-to-access areas.
This 4-piece C-arm set is an integral part of the Wieländer+Schill XSeries system, offering the following advantages to body repair professionals:
Modular Flexibility: The two different sized C-arms (GC 80/130 and GC 140/240) cover most standard and large-scale repair requirements.
Optimized Access: The included extensions (700153 and 700517) enable work on the internal structural elements of vehicles where standard tools cannot reach.
Portability and Protection: The dedicated, durable carrying bag ensures that the valuable precision tools remain protected during transport outside the workshop and organized at the workstation.
System Integration: The set is fully compatible with the XSeries professional riveting technology, ensuring a seamless and efficient workflow.
This set is an essential tool for any professional using Wieländer+Schill XSeries technology for body repair work, ensuring high-quality and durable bonds.
