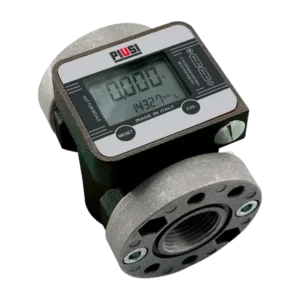

The PIUSI K600/3 electronic gear flow meter offers an excellent solution for the precise control of dispensing lubricating oils and antifreeze fluids in non-commercial applications. This reliable device is the ideal choice for agricultural, mining, construction, and general industrial applications where accurate quantity measurement and dependable operation are essential. The K600/3 combines PIUSI quality and durability with modern electronic measurement technology.

Key Features and Advantages

The purpose of the K600/3 flow meter is to ensure maximum accuracy when dispensing low, medium, and high viscosity fluids, such as lubricating oils and special fluids.

• Kivételes Pontosság: The measuring instrument is extremely precise, +/- 0.5%-level guarantees measurement accuracy at maximum flow rate.

• Reliable Construction: The flow meter has acetal resin oval gears that resist various viscosity fluids and ensure a long service life.

• Aluminum Measuring Chamber: The robust aluminum measuring chamber body guarantees structural integrity and long-term reliability.

• Integrated Suction Filter: The built-in suction strainer protects the measuring mechanism from potential contamination and deposits, ensuring obstruction-free dispensing.

• Low Pressure Drop: At the maximum flow rate, it only causes < 0.5 bar a pressure drop, which has a minimal effect on system performance.

• Low Energy Consumption: The electronic operation is extremely energy-efficient.

• Versatile Application: Ideal for both mobile installations and industrial environments.

• Adjustable Flanges: It features adjustable flanges for flexible installation.

Display and Data Management

The K600/3 is available in two main versions, differing in the presence of a display and the method of data collection:

K600/3 METER (Display Version)

This model provides real-time feedback on the dispensed quantity directly at the installation point.

• Partial Total: 5 digits (height: 11.5 mm), floating-point display between 0.001 and 999.99.
• Total Sum (Total): 8 digits (height: 5 mm), between 1 and 99,999,999, non-resettable (Totalizer).

K600/3 PULSE (Pulse Version)

The PULSE version does not have a display, but is ideal for remote measurement and integrated systems.

• Remote connection: It has a connection cable up to 10 meters long, which allows for remote connection of the flow meter to an external display or data collection system (e.g., PIUSI remote display unit). This is the ideal solution if you want to monitor quantities in an office or central location separate from the dispensing site.

Technical Data Summary

The specifications of the K600/3 flow meter ensure reliable performance even in the most demanding industrial environments.

Product Codes and Versions

The K600/3 is available in two main configurations, with different part numbers:

Application Areas

The K600/3 flow meter is the ideal choice for all industrial and agricultural sectors where the precise dispensing of lubricants and antifreeze fluids is critical:

1. Agriculture: Precise topping up of lubricating oil and hydraulic fluids for machinery and equipment.
2. Mining & Construction: Maintenance of heavy-duty machinery (excavators, bulldozers) where minimizing fluid loss is crucial.
3. General Industry: Monitoring of lubricant supply for production lines, compressors, and other industrial equipment.

The K600/3 is not just a measuring device, but a reliable partner in optimizing maintenance processes, ensuring that precisely the required quantity is always used.
