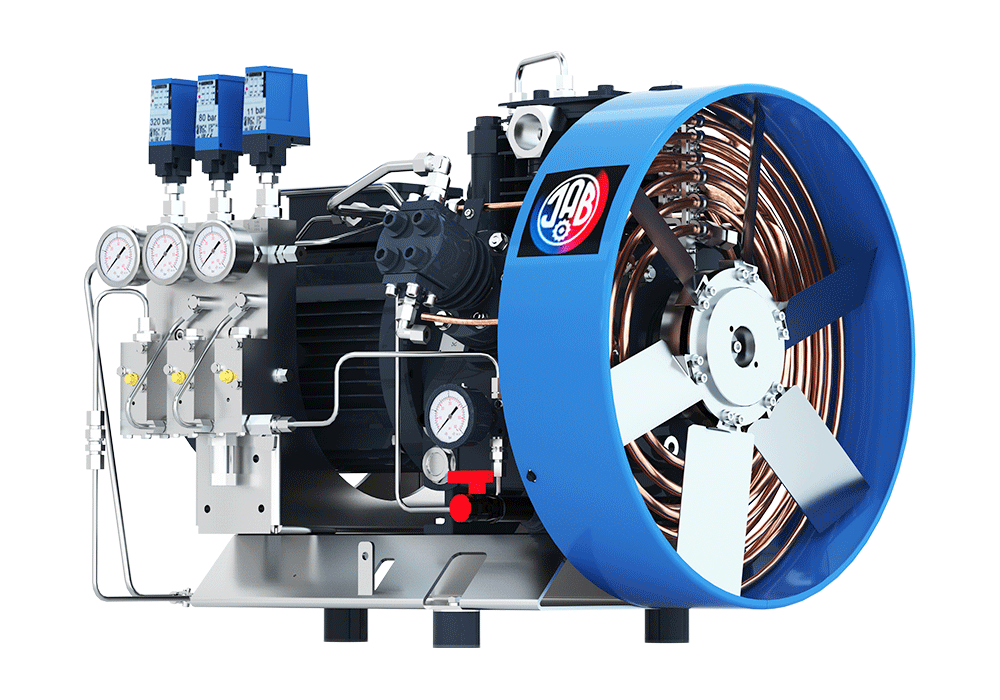

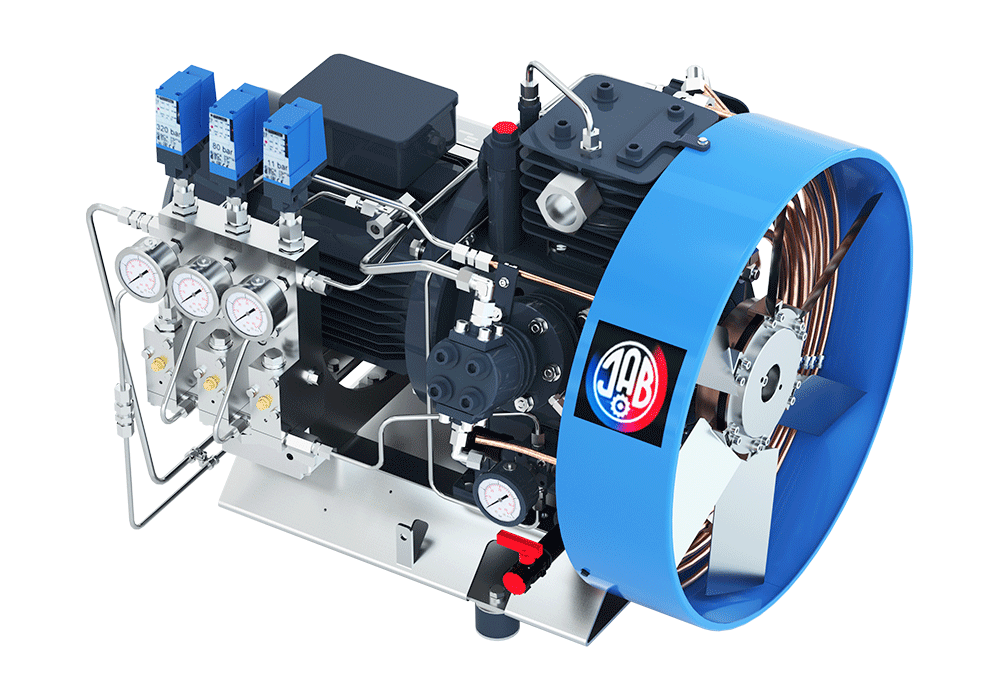

The J.A. Becker & Söhne SV 125/40 model is an extremely efficient, two-stage air compressor specifically designed for industrial applications requiring high pressure. This unit delivers excellent performance at a maximum operating pressure of 40 bar while providing a volumetric flow rate of 7.5 m³/h (125 l/min). The robust design and premium quality components guarantee reliable operation and a long service life.
This compressor is not a „standard product”; J.A. Becker & Söhne is committed to offering tailored solutions for specific industrial needs, which is evident in every detail of the SV 125/40 model.
The SV 125/40 compressor features several outstanding properties that optimize performance and reduce operating costs:
Outstanding Efficiency: The two-stage compression arrangement ensures high pressure is achieved with minimal energy consumption.
No „Mass-Produced Item” Solution: Every unit is manufactured according to the highest quality standards, ensuring long-term, trouble-free operation.
Highly Efficient Cooling: The advanced cooling system efficiently manages the heat generated during compression, which is critical for achieving 40 bar pressure and increasing the lifespan of components. This feature ensures a stable operating temperature even under intense load.
Fully Automatic Draining (Condensate Removal): The built-in, fully automatic condensate drain system ensures that the compressed air remains dry, protecting connected systems from corrosion and failure. This minimizes the need for manual intervention.
Long Maintenance Intervals: The use of excellent quality materials and precise engineering has significantly extended maintenance intervals, which reduces downtime and annual servicing costs.
The specifications of the SV 125/40 compressor meet the demands of high-performance industrial applications:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Maximum Final Pressure | 40 | bar | Extremely high operating pressure. |
| Volume flow | 125 | l/min | Corresponds to 7.5 m³/h. |
| Compression Stages / Cylinder | 2 / 2 | – | Two-stage compression system. |
| Electric Motor Power | 2,2 | kW | Energy-efficient drive. |
The SV 125/40 compressor is an ideal choice in areas where a reliable, high-pressure air supply is required, for example:
Special Pneumatic Systems: Processes requiring 40 bar pressure.
Industrial Machinery Manufacturing: Operation of high-precision tools and equipment.
Laboratory and Research Applications: Supply of stable and clean compressed air.
The design of the unit guarantees that the quality of the compressed air remains excellent, thanks to effective cooling and automatic condensate management. The 2.2 kW electric motor creates an optimal balance between performance and energy consumption.
J.A. Becker & Söhne products represent first-class quality in every respect, ensuring long-term, economical operation. Further detailed information, including the complete technical data sheet and product brochure, can be downloaded from the relevant documents section.
