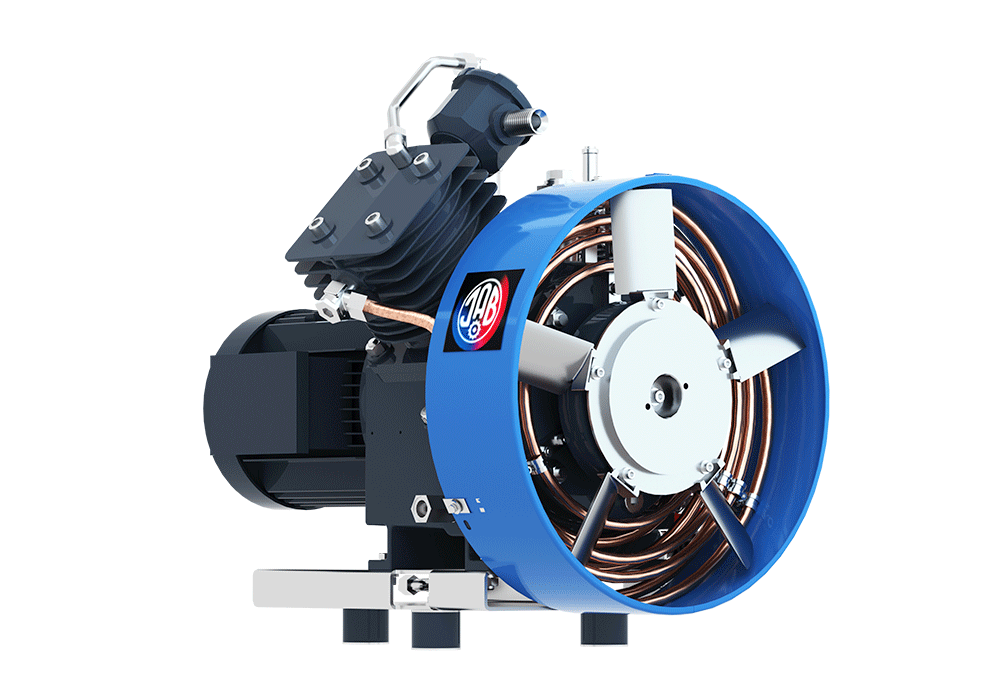

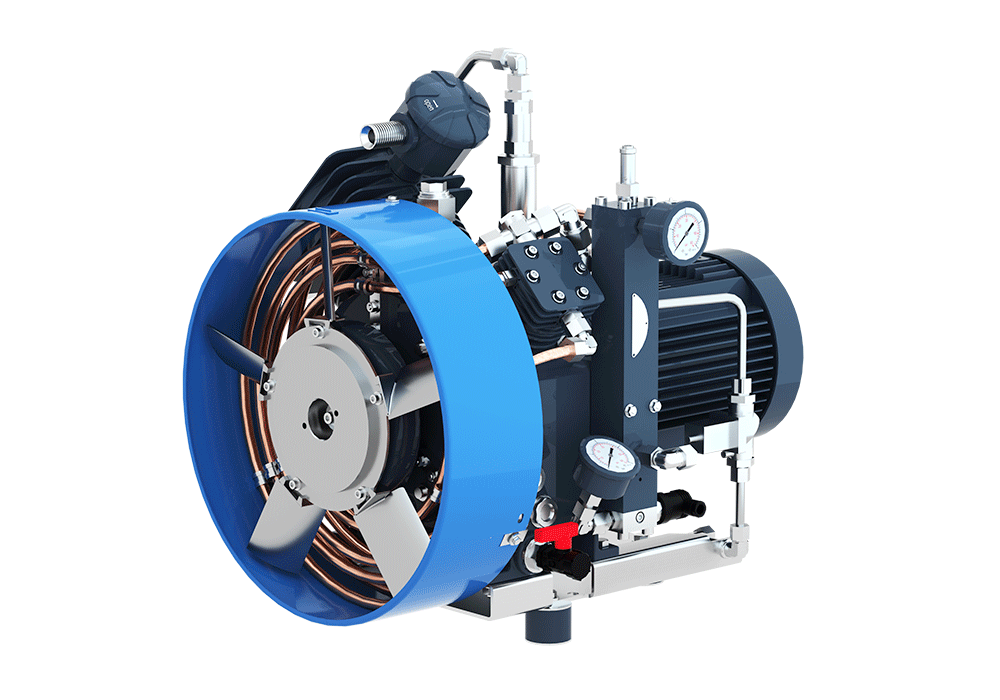

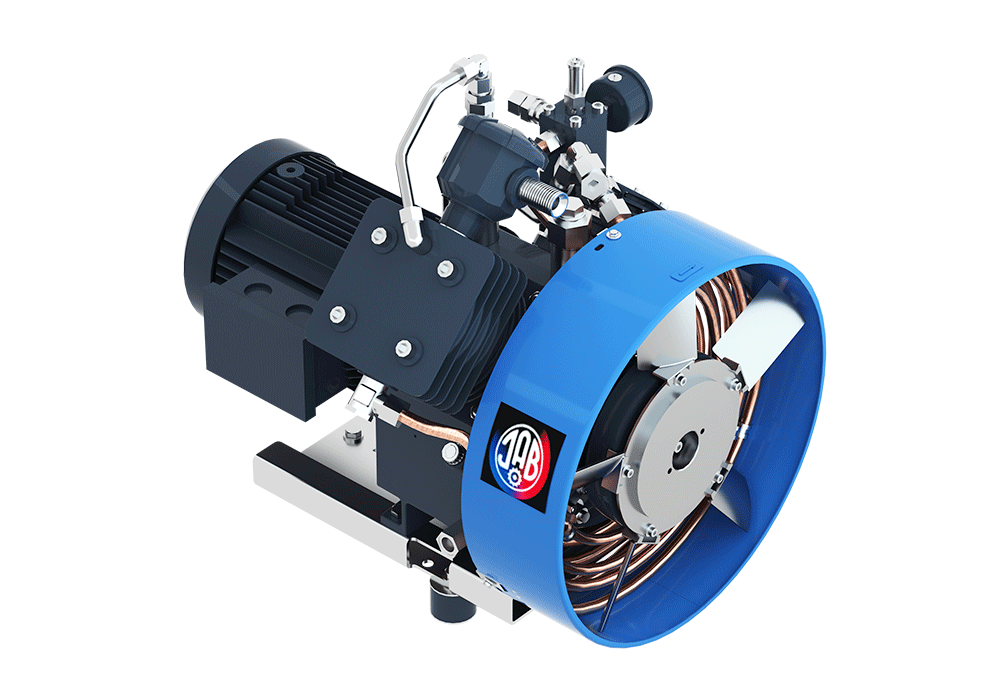

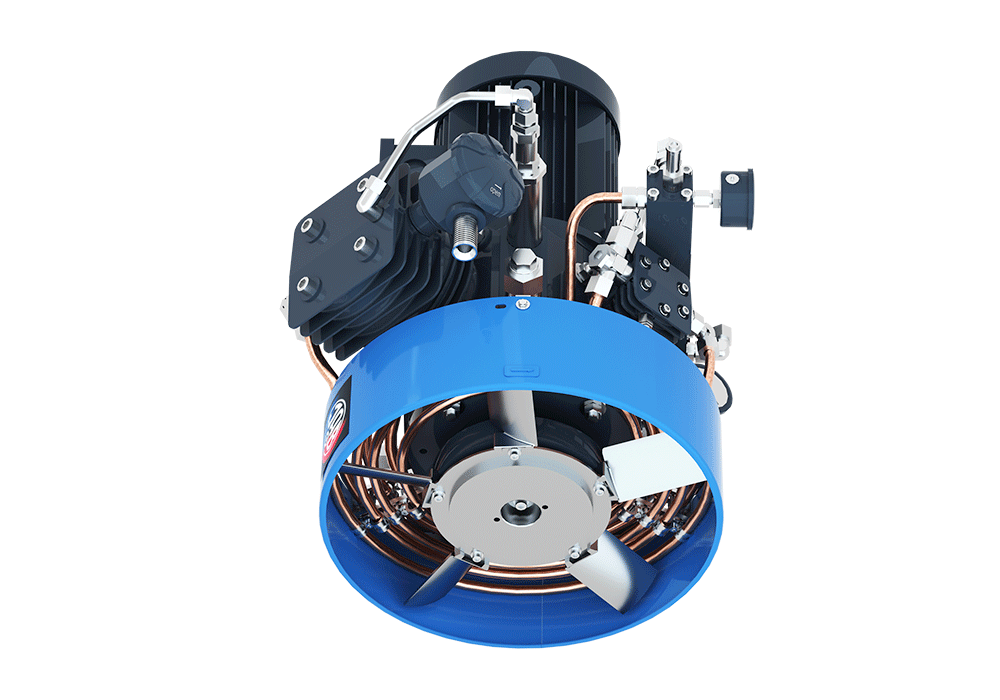

The J.A. Becker & Söhne SV 125/40 N model is a high-quality, two-stage nitrogen compressor, specially developed for industrial applications requiring high reliability and efficiency. This equipment is the ideal choice for areas where precise, high-performance nitrogen supply is needed, up to an operating pressure of 40 bar.
Becker's commitment to quality is reflected in the „NO 08/15 PRODUCTS” (No Average Product) philosophy, which guarantees that the SV 125/40 N offers a premium category solution in every respect.
The SV 125/40 N compressor features several outstanding properties that ensure a long service life, low maintenance requirements, and excellent operating parameters:
High-Efficiency Cooling: The advanced cooling system minimizes heat generation during the compression process, which increases machine efficiency and extends component lifespan.
Fully Automatic Blow-Off (Drainage): The built-in, fully automatic condensate drain system ensures the system remains dry, preventing corrosion and performance reduction, all without human intervention.
Long Maintenance Intervals: As a result of the robust construction and high-quality components, maintenance cycles have been significantly extended, thereby reducing downtime and operating costs.
Two-Stage Compression: The two-stage design allows for achieving a maximum operating pressure of 40 bar while optimizing energy consumption between the individual compression stages.
The precise technical parameters of the SV 125/40 N nitrogen compressor ensure reliable performance even in the most demanding applications.
| Parameter | Value | Note |
|---|---|---|
| Maximum Operating Pressure | 40 bar | For high-pressure applications |
| Flow Rate (Min.) | 8.6 m³/h | 144 l/min |
| Flow Rate (Max.) | 10.3 m³/h | 171 l/min |
| Inlet Pressure (Min.) | 0.1 bar | |
| Inlet Pressure (Max.) | 0.3 bar | |
| Pressure stages / Number of cylinders | 2 / 2 | Two-step design |
| Electric Motor Power | 3 kW | |
| Rotational speed | 1.000 U/min |
The volumetric flow rate is given in two different units of measurement so that users can easily integrate the equipment into their existing systems:
L/min: 144 l/min (minimum) and 171 l/min (maximum)
m³/h: 8.6 m³/h (minimum) and 10.3 m³/h (maximum)
The SV 125/40 N model is an integral part of J.A. Becker & Söhne's lifting and compressor technology portfolio. The two-stage design and 40 bar final pressure make it ideal for use in the following areas:
Gas Supply Systems: Providing a stable and reliable nitrogen source for laboratory, research, or industrial processes.
Inerting: Application of nitrogen to create an inert atmosphere where the presence of air (oxygen) can be detrimental.
Pressure Tests: Testing and inspection of high-pressure systems.
During the design of the equipment, special attention was paid to durability and ease of use. The 3 kW electric motor operates at 1000 rpm, creating an optimal balance between performance and mechanical stress.
J.A. Becker & Söhne products are guarantees of German engineering precision. The SV 125/40 N compressor is considered a first-class product in every respect, which is evident in its detailed technical specifications and key functions. The highly efficient cooling and automated operation minimize the need for user intervention, enabling seamless operation of industrial processes.
Detailed data sheets and brochures are available for the product to view further technical information.
