Item number: 881090NV

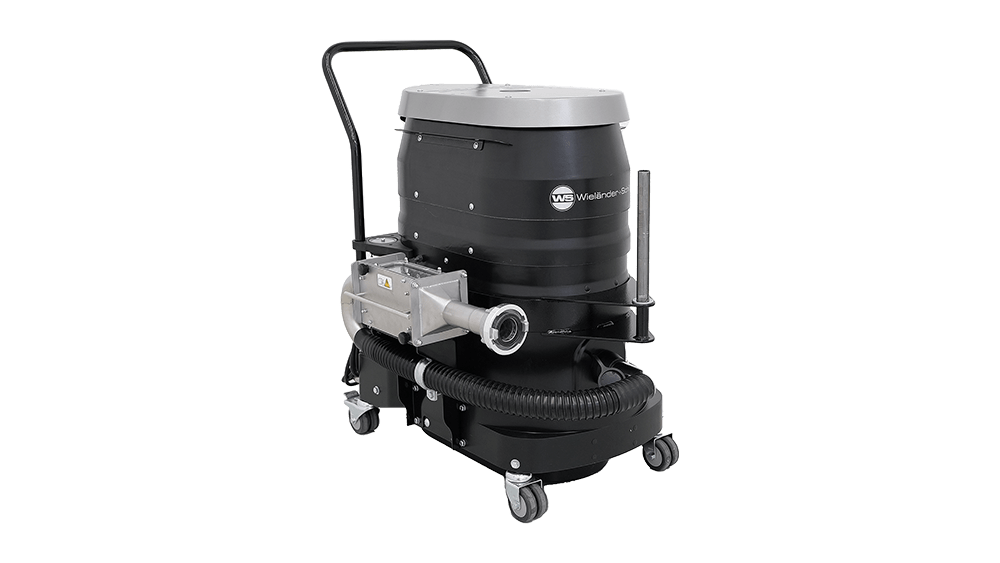

Wieländer+Schill presents the WS Alu mobile vacuum system (881090NV), a mobile explosion-proof suction unit specifically designed for the safe and efficient extraction of aluminum dust (Explosion Hazard Zone 22). This equipment is an indispensable tool for all bodywork and metalworking workshops where handling aluminum dust requires enhanced safety regulations.
This mobile vacuum system prioritizes safety and performance, especially considering the dangers of fine aluminum dust.
The main safety feature of the device is the built-in spark trap.
Operating Principle: Incandescent abrasive particles (sparks) entering with the sucked air through the suction hose collide with the metal plates found in the spark trap.
Cooling: During these collisions, the sparks cool down before reaching the suction unit and the fine filter.
Filter Protection: This mechanism prevents hot particles from damaging or igniting the fine filter, which is dimensioned for the filtration of „M” class fine dust.
Explosion Proofing: The design of the entire system complies with the regulations for Explosion Hazard Zone 22, ensuring a safe working environment during operations involving aluminum dust.
The term „mobile” is also reflected in the design of the equipment, enabling flexible positioning within the work area.
Mains Voltage: It operates with a 230 V mains connection, allowing for easy installation under standard workshop conditions.
Könnyű Kezelhetőség: The compact design and mobile structure ensure that the vacuum cleaner can be easily moved between different workstations.
The WS Alu mobile vacuum system, item number 881090NV, comes fully equipped, enabling immediate operation:
| Item | Spezification | Connection Information |
|---|---|---|
| Plastic Suction Hose 1 | 5 meters long, Ø 40 mm inner diameter | On the vacuum side: Storz C coupling – DN50; On the accessory side: ID 35 mm |
| Plastic Suction Hose 2 | 5 meters long, Ø 50 mm inner diameter | On the vacuum side: Storz C coupling – DN50; On the accessory side: ID 50 mm, with retaining pin hole |
| Curved Handle Tube | Ø 50 mm diameter | 1 pc retaining pin as accessory |
| Crevice Suction Head | 60 x 12 mm, bevelled design | N/A |
This hose with two different diameters (40 mm and 50 mm) provides flexibility for connection to different suction power requirements and accessories.
To increase system efficiency and optimize the working environment, several accessories are available, which can be purchased separately:

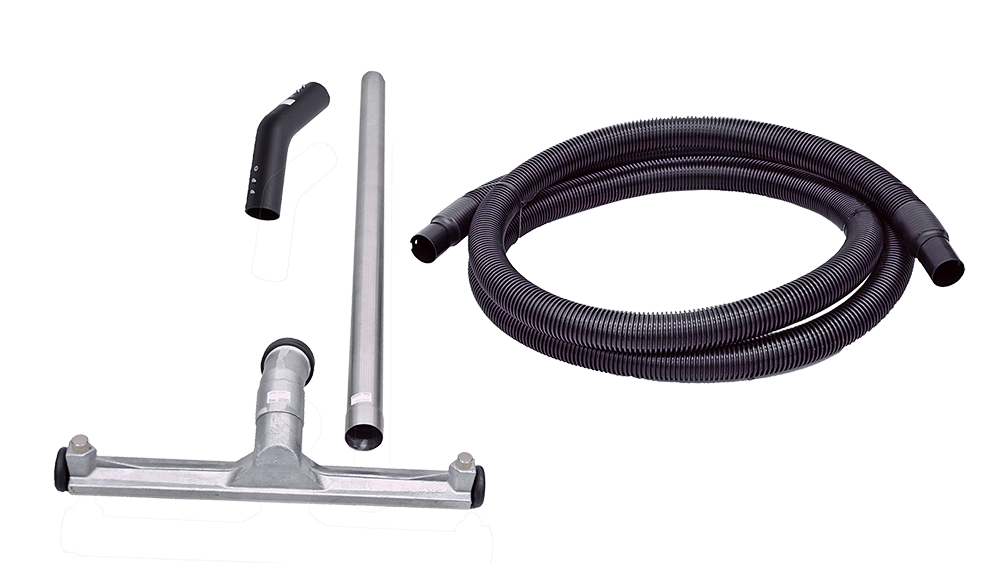

This set is the ideal accessory for the mobile WS Alu vacuum system (including model 881090NV) for efficient cleaning of larger surfaces.
Set contents:
Plastic hose with coupling: 5 m, Ø 50 mm
Bent handle tube with coupling at both ends: Ø 50 mm
Handle tube: 1000 mm, Ø 50 mm
Floor suction head

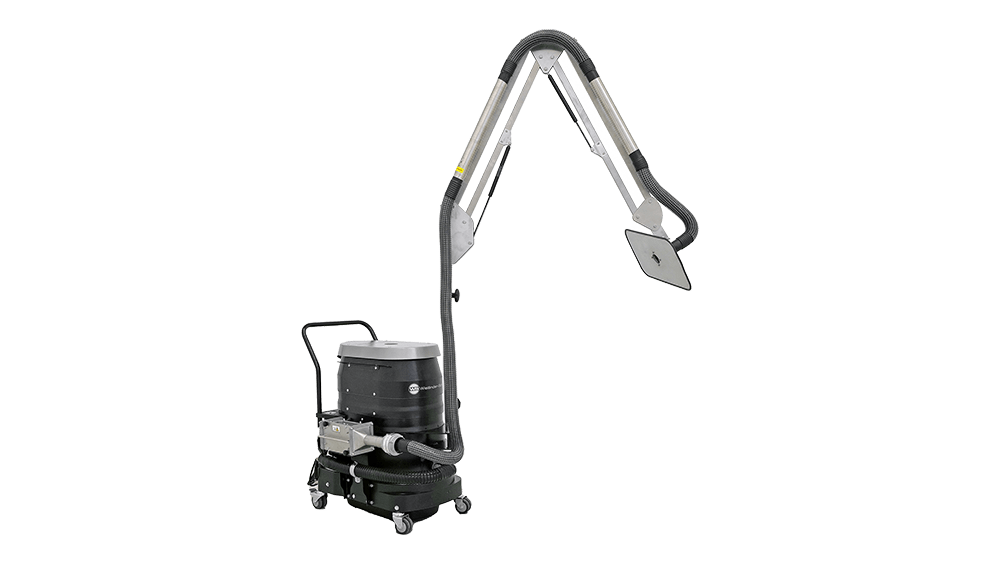

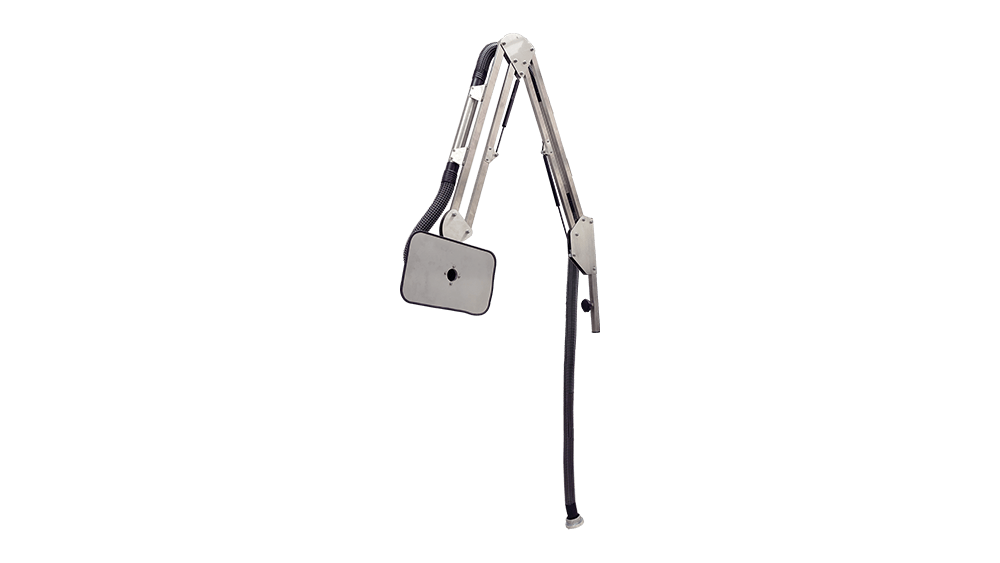

This extraction arm significantly increases user efficiency and freedom of movement during work processes.
Dust and Chip Collector: The extraction plate optimally collects dust and chips directly at the source.
Connection: With the help of the C-coupling, it can be connected directly to the vacuum cleaner or via an extension hose.
Könnyű Kezelhetőség: For easier handling, the arm can be mounted on the Mobile Media Supply unit.
Compatibility: Compatible with 881089NV, 881090NV and 881091NV type vacuum systems.

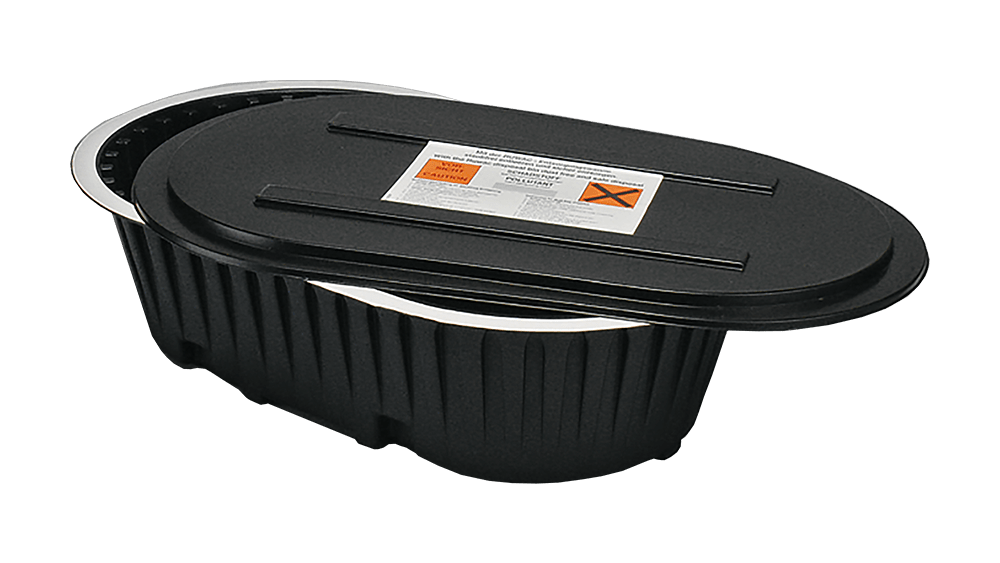

This accessory container is used for the safe storage of dust and waste.
Replacing the filter element ensures continuously high filtration efficiency.
Filter Surface Area: 1.2 m²
Compatibility: Compatible with 881089NV, 881090NV and type 881091NV mobile dust extraction units.
The WS Alu mobile dust extraction system from Wieländer+Schill WS Arena – Professional Workshop Systems is part of the product family, and within that, it is Vacuum Systems categorized. This positioning guarantees compliance with the strict quality and safety standards that the company provides for the body repair industry.
A WS Alu vacuum system (881090NV) a robust, 230 V mobile solution that addresses the most important aspect: the safe handling of aluminum dust, with a spark arrestor and an explosion-proof design. The included suction hoses of various sizes and essential accessories provide an immediate, professional-ready configuration. The wide selection of accessories allows the system to be customized for specific workshop requirements.
