The LEITENBERGER SLD01 leak testing kit was developed for performing professional, documented pressure tests on refrigeration and air conditioning systems, immediately after manufacturing or servicing. This professional tool enables fast and extremely precise measurement of pressure ratios on both the low and high-pressure sides, using forming gas or nitrogen. Thanks to the built-in recorder, the measurement results can be immediately recorded and handed over to the customer, ensuring full transparency and legal compliance.
This „Made in Germany” quality equipment not only aids in leak detection but also optimizes the entire service process, resulting in cost savings for customers while contributing to environmental protection by preventing leaks.
The SLD01 leak testing kit features several functions that set it apart from competitors and guarantee precise execution of work:
Real-time Logging: The built-in printer creates an immediate log of the pressure test, documenting and guaranteeing the correct work procedure. This documentation is legally valid for both the service workshop and the customer.
Two-sided, High-Precision Measurement: Enables pressure measurement in the low-pressure (LP) and high-pressure (HP) ranges of the refrigeration circuit, with an accuracy of up to hundredths of a bar. This is critically important for the precise localization of leaks.
Integrated Functionality: The system can be evacuated and filled with a single device, thereby reducing the number of tools required.
Legal Security: Performing a leak test before filling provides a legal guarantee of the system's integrity.
Temperature Measurement: Capability to measure the temperature of the refrigerant in the line, completing the full diagnostic scope.
Environmental Protection: Early detection and prevention of leaks significantly reduce the escape of harmful refrigerants into the environment.
Cost-Effectiveness: Fast and accurate diagnostics reduce repair time and the costs incurred by the customer.
The SLD01 leak testing kit has been designed to meet the highest quality requirements. The parameters necessary for precise measurements are as follows:
| Parameter | Spezification |
|---|---|
| Part number | SLD01_LR_KIT 01 |
| Field of application | Cooling and air conditioning systems |
| Measurement principle | Pressure Test (Forming Gas / Nitrogen) |
| Pontosság | Hundredth bar (0.01 bar) |
| Measurement range | Low Pressure (LP) and High Pressure (HP) |
| Display | Digital, real-time |
| Documentation | Integrated printer logging |
| Temperature measurement | Yes, in the refrigerant line |
| Device | ELS_04 Leak Detector |
| Tápellátás | 110 / 230V Mains adapter |
The complete ready-to-use set includes the leak detector main unit and all necessary accessories for immediate commissioning:

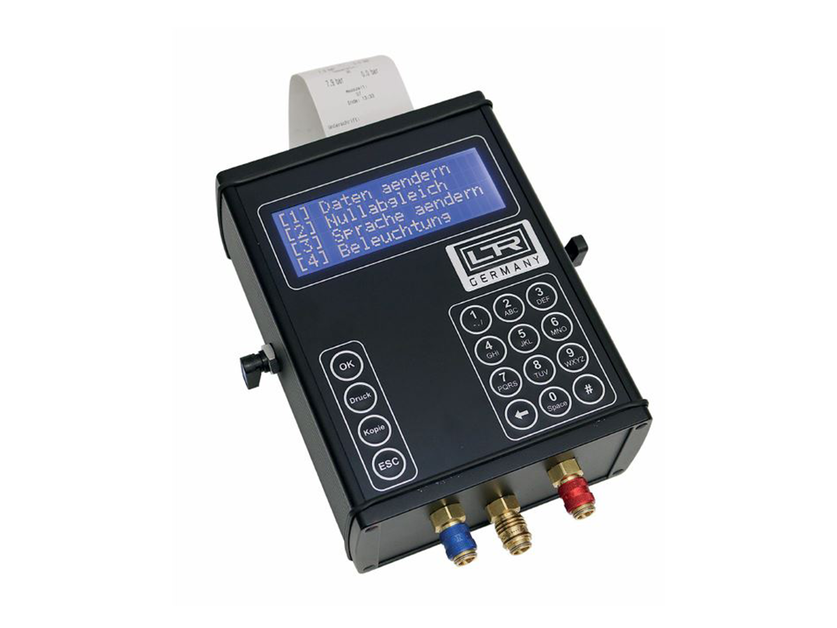

Main unit: Leak detector with built-in print recorder.
Hoses:
1 meter LP (Low Pressure) hose (blue).
1 meter HP (High Pressure) hose (red).
1 meter ET 402 charging hose (yellow).
Power Supply: 110 / 230V mains power supply.
Paper: 1 roll of thermal paper for printing logbooks.
Locking mechanism: Securing chain for safe placement of the device.

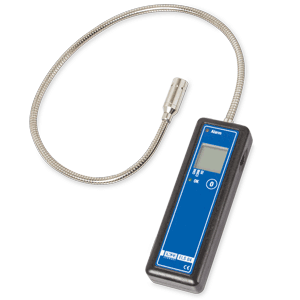

Accessory detector: ELS_04 Leak detector unit.
For long-term reliability, spare parts are also available for the set, ensuring continuous operational capability:
1 meter LP hose (blue)
1 meter HP hose (red)
1 meter ET 402 charging hose (yellow)
110 / 230V mains power supply
1 roll thermal paper
Securing chain
The SLD01 leak detector set is the ideal choice for any technician seeking the highest level of accuracy, documentation capability, and reliability in refrigeration and air conditioning technology. German engineering guarantees durability and precise operation even in the most demanding industrial environments.
